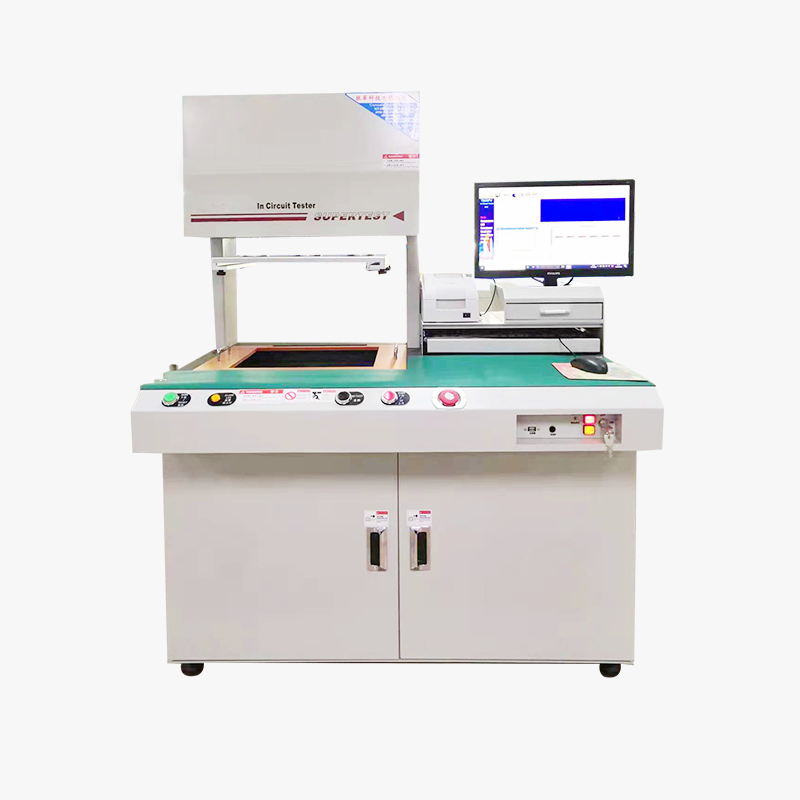

In Circuit Tester Special Testing Features
1. Functional TestModule. Applies power to PCB and check signals.It can also connect to external signal source, instruments and oscilloscope for further critical performance test.
2. 3-Point test ,bipolar transistor:on/off an HFE test,FET:on/off and VDS test.
3. Unique ICT which combines with visual test (lighting component). Pioneer in color distinguish software. Interface C&ISP programming.Read/Write 93C &24C series EEPROM .Read/Write Register in ICs .
4. 24 Digital I/0 Ports.
ICT testing Hardware Features
1. High-speed performance with Reed Relay.
2. High accurate. 16 bit digital-to-analog and analog-to-digital converter offers 64K resolution for accurate measurements.
3. Reliable measurement. Direct Digital Synthesis (DDS)generates low-distortion test waveform with high frequency stability.Proprietary advanced digital filteringtechnology (DFT)provides an excellent signal-to-noise ratio for stable measurement.
4. Easy scan. Detects the open pins of SMT IC,BGA Package and IC pin at the bus.
5. Capability of external camera connection.With visual functional test board that can distinguish color by vision test.
ICT testing Software Features
1. User friendly Windows10
2. Super debug mode. Permits fast trouble shooting. Programmable options include driving current,delay time
and testing frequency.
3. Waveform analyzer. Assists in determining required delay time for accurate measurement.
4. Easy to program.Programming is easily accomplished through Auto Learn,step testing and individual editing.Tolerances can be globally edited;guarding,skip or waiting time are edited individually.
5. Functional Platform.User friendly table form programming technique is very easy to use and support.
6. Boardmap fault locator. Automatic graphic display of fault location.
Customize
Our In Circuit Tester from understanding customer requirement, providing design solutions, writing software and manufacturing hardware, to installation and debugging, and finally delivering for production use, our engineers are tailor-made for you throughout the entire process.
